Test equipment to determine the mass strength of pelleted carbon black as per ASTM D1937.
The test method ASTM D1937 "… is designed to determine the force required to pack a cylindrical column with pelleted carbon black. The results of this test are believed to relate to the ability of the carbon black to flow in bulk handling systems." … "Mass strength gives an indication of the flowability in bulk handling. It is affected by pellet properties such as hardness, size, shape, and especially fines content."** Excerpts from chapter 1 resp. 4, of ASTM D1937-18
Key features
- State-of-the-art design
- Standalone device with programmable controller with 5.7” display, 640×480 px
- Software guided measurement sequence according to ASTM D1937
- Software guided load cell calibration
- 4 robust push buttons for “dirty” operations

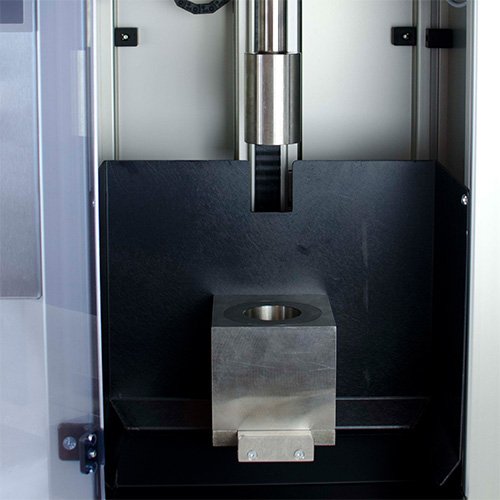

- Stepper motor driven plunger with position feedback of sample height
- Force measurement by load cell
- Linear carriage with load cell, stepper motor driven with accurate load application
- up to 30 mm/s and with position reading
- Anodized aluminum frame and fully dust proof stainless steel electronic cabinet
- Compact table model – small footprint
- AC mains supply only (no compressed air) – wide range mains 90 to 240 VAC
Safety
- CE marking
- SGS-USTC certified
PMST options*
- None
- PMST incl. 3 calibration masses
Specifications
- Dimension (L x W x H) - 61 x 44 x 95 cm
- Weight - 67 kg
