Oil absorption data system compliant to ASTM D2414 OAN and D3493 COAN for carbon black, ASTM D6854 for silica, as well as ISO 4656

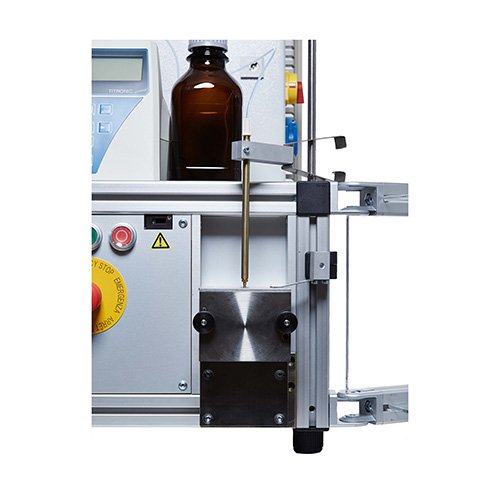

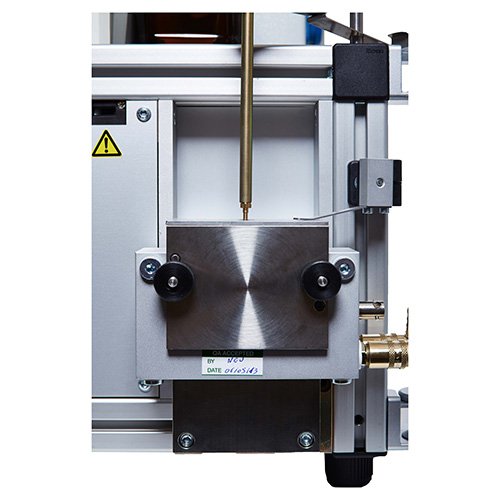

DABS is an oil absorption system to characterize the structure of carbon black and silica, as well as oil absorption of other powder material, also known as DPB absorption, DBP number or DOP number.
The data treatment for recording of a full mixing curve was initially developed by HITEC Luxembourg and is since then constantly further extended to satisfy increasing performance requirements. The curve fitting by a polynomial of 3rd order was a result of this initial development and has been introduced as “procedure B” in ASTM D2414.
Key features
- Compact design with small table footprint
- Fits standard mixing chambers, while safety cage allows for easy access to chamber for filling and cleaning
- Selectable variable rotor speed and oil debit rate
DABS options*
- Option 20 Nm torque measuring range
- Mixing Chamber Temperature Control
- Mixing Chamber Extension Funnel for testing of fluffy materials
Specifications
- Dimension (L x W x H) - 40 x 50 x 95 cm
- Weight - 60 kg
